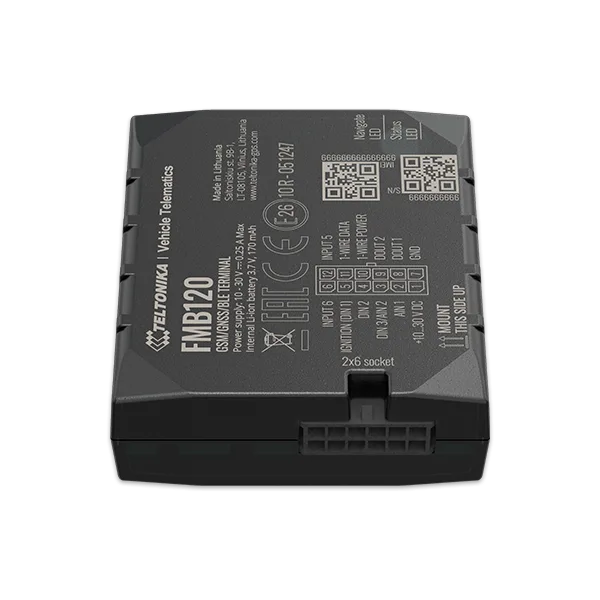

FMB120 "modular"
The FMB120 “Modular” is a professional vehicle tracker with internal high gain GSM and GNSS antennas which can collect device coordinates and other valuable data and transfer them via GSM network to the server. It’s easy to use, easy to conceal, and installation ready. Perfect for fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars, and much more. It can even monitor engine status, control a truck’s door and so on.
The FMB120 “Modular” is also scalability friendly, you can add extensions, alarms, RFID, etc.
If you’re looking for an affordable but extremely powerful vehicle tracker that you can enhance progressively with cool add-ons this one’s for you.
Features
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GPS, NITZ, NTP
Fuel monitoring
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Specifications
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 channel
Tracking sensitivity
165 dBM
Accuracy
< 2.5m CEP
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
CELLULAR
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
POWER
Input voltage range
10 - 30 V DC with overvoltage protection
Back-up battery
170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption
At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Sleep) At 12V < 20 mA (GPS Sleep) At 12V < 35 mA (nominal)
BLUETOOTH
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Digital Inputs
3
Digital Outputs
2
Analog Inputs
2
CAN Adapter inputs
1
1-Wire
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM + eSIM (Not Included)
Memory
128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions
65 x 56,6 x 18,9 mm (L x W x H)
Weight
55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
-0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
Certifications & Approvals
Regulatory
CE/RED, E-Mark, EAC, RoHS, REACH
